CONVEYOR BELTS OPTIMIZATION
LIFTUBE®
YOUR ANSWER FOR PROBLEMS OF SEALING AND SAFETY

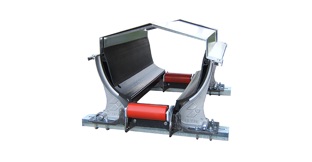

The patented LIFTUBE® system enables the belt to run on a central horizontal tilting roller and to slide on the edges, which also tilt.
A removable hood can be adapted to the equipment to reduce belt conveyor dust emission. Only the size of the hood and the central horizontal roller depends on the width of the conveyor. The conveyor belt and rollers can be easily accessed thanks to innovative tilting legs.
Belt width : from 500 to 1400 mm
Belt speed : 0.05 to 5 m/s
Output : Up to 1500 tons/h
Particle size : up to 500 mm
Density : up to 4
Product temperature : up to300°C (570 °F)
Standard & evolutive modules
Suitable for both new or existing conveyors
ADVANTAGES
- ENVIRONMENT : Dust emissions reduction between the loading and off-loading points: compliance with current standards (ISO 14001)
- QUALITY : Contamination free for your product/Longer service life of the belt
- TOTAL SAFETY : Protection of pinch points in accordance with official norms
- SAVINGS : No change in the existing structure/optimization of output/no loss of production
- MAINTENANCE : Easy & quick access to the belt during maintenance operations
- MODULAR : Standard, adaptable and evolutive elements on new or existing conveyors. Installation on all or part of the conveyor / Compatible with reversible belt
- Visits & technical recommendations (proportioning and layout)
- Supply of the installation plan
- We offer complete installation of our equipment if needed
- Up to 3-year warranty
- On-site & external training
- After-sales service & maintenance contract
- Statutory monitoring
- ATEX/Food industry/Auto-extinguishing
- High temperature (product temperature up to 300°C /570°C)
